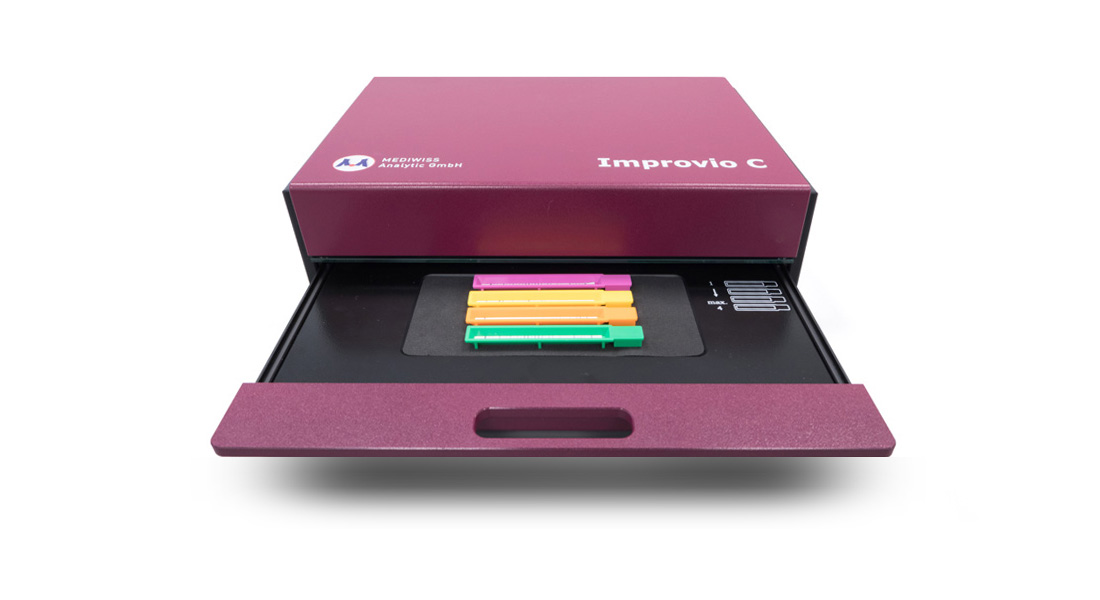

  • Scanner "Improvio C" for up to 4 panels

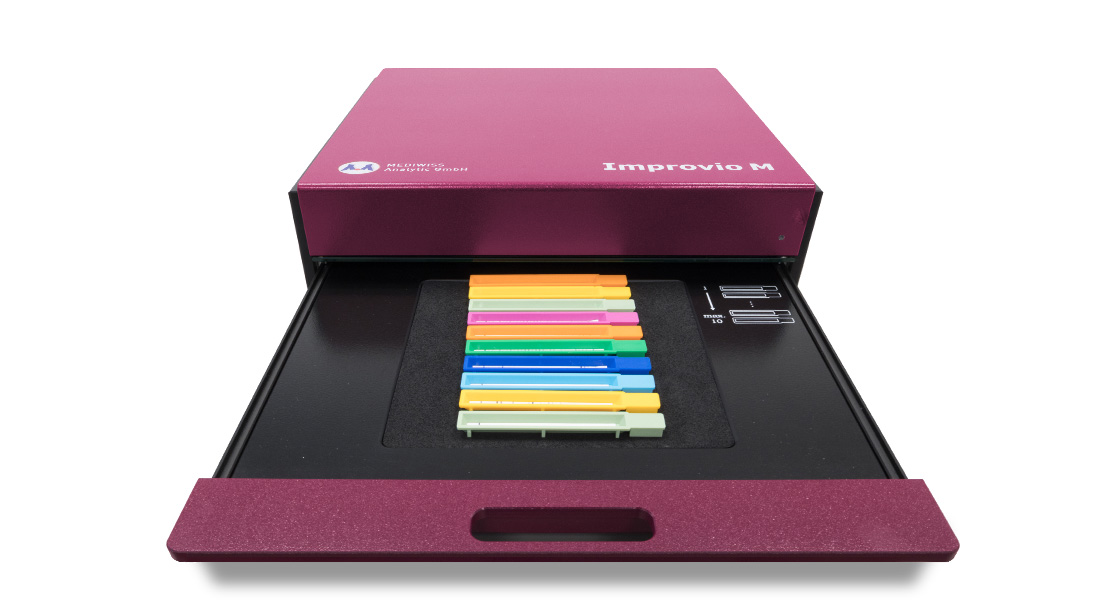

  • Scanner "Improvio M" for up to 10 panels

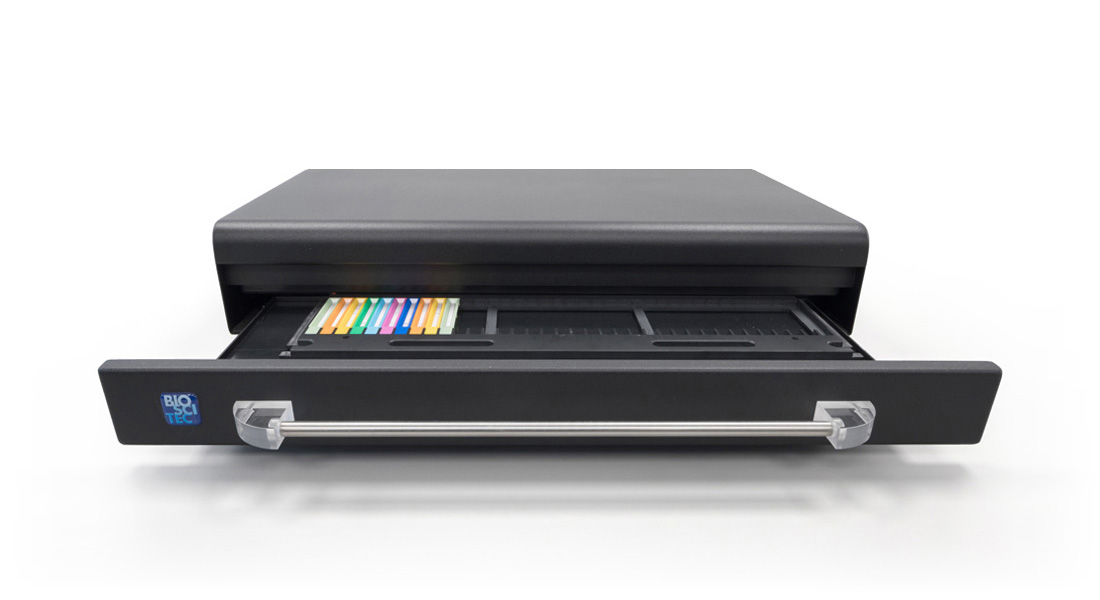

  • Scanner "Improvio L" for up to 36 panels

Improvio C Improvio M Improvio L

Improvio Scanner Systems

For evaluation of the results you can choose between three different scanner types, depending on the laboratory size. Each scanner is adapted to the western-blot-test system for perfect clear results and is equipped with a software package for detailed test information. Every scanner can be used for a detection of specific IgE and IgG4 with AllergyScreen® and AlleisaScreen® Teststrips. The analysis and the corresponding printouts can be generated in all languages.

  • Improvio C - Scans 4 test strips at a time
  • Print out and program available in all languages
  • Data export via Windows-Excel™ or TXT
  • Data import via CSV
  • Data transfer to LIMS possible
  • Integrated self-control of the system by Fuji™ gray scale
  Improvio C Improvio M Improvio L
Strips scanned at a time 1—4 strips 1—10 strips 1—36 strips
Dimensions (h x 1 x w) 7.5 x 29.5 x 23 cm 7.7 x 29.5 x 43 cm 10.5 x 60 x 35
Weight 2.9 kg 5.1 kg 25 kg
Plastic contents 2 housing parts 2 housing parts 3 housing parts
Drawer mechanical drawer mechanical drawer mechanical drawer
AllergyScreen /AlleisaScreen yes yes yes
Minimized shadowing yes yes yes
Free position of test strips yes yes yes
Easy to clean yes yes yes
Contamination prevention yes yes yes
Footprint small medium large
Simplified setup yes yes yes
Calibration card yes yes yes
Computer connection USB 2.0 USB 2.0 USB 2.0
Power supply 1 x external power supply, CE certified 1 x external power supply, CE certified 1 x external power supply, CE certified
Input 220V - 240V 50Hz, 0.4A 220V - 240V 50Hz, 0.4A 220V - 240V 50Hz, 0.4A
Output 10V- 1A 10V- 1A 10V- 1A
